Description

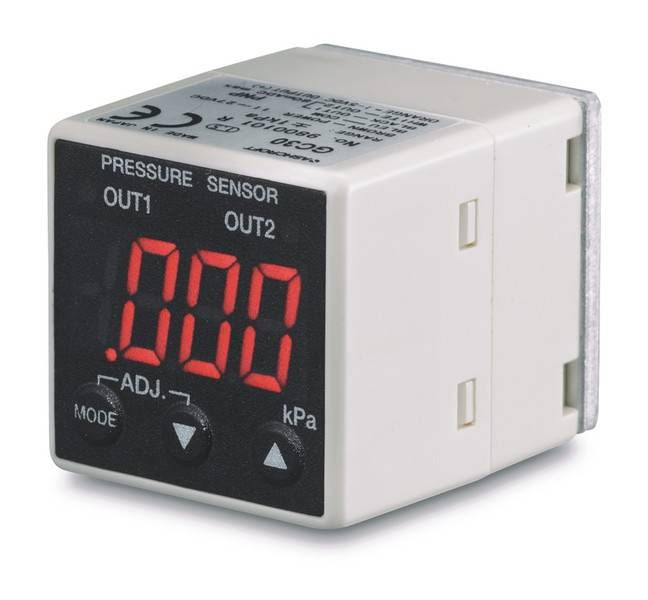

Ultra-Compact Digital Differential Pressure Sensor Model GC30

Features

• Ultra-compact design (30 mm x 30 mm)
• Combined three-in-one digital pressure gauge, switch and transducer
• Simple Push-Button configurability allows user to adjust switch settings, analog scaling
• Numerous standard ranges available
• Output signal 1-5 VDC

Specifications

• Size: 30x30x46 mm

• Accuracy: 1,5 %
• Metric Range Min: 0 ... 50 Pa

• Metric Range Max: 0 ... 5 kPa

• Imperial Range Min: 0 ... 0,25 in. H₂O

• Imperial Range Max: 0 ... 25 in. H₂O



Applications

Filter monitoring, Clean room pressure differential, Vacuum/suction pressure sensing and control, • • Fan speed control
