Description

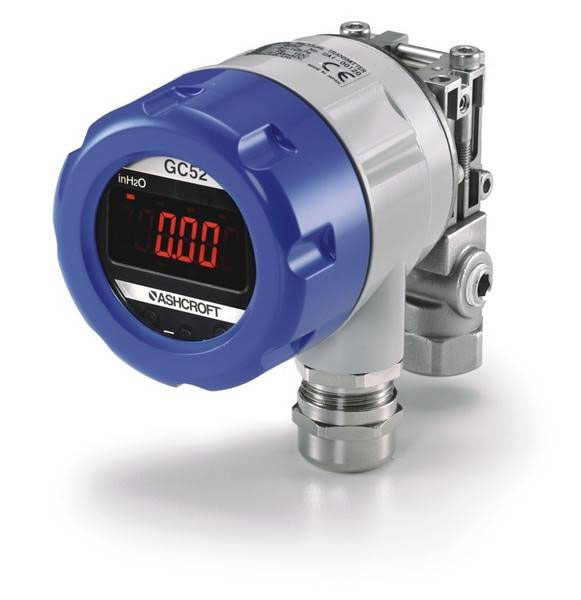

Rangeable Wet/Wet Differential Pressure Transmitter Model GC52

Features

• Up to 8 times smaller than a conventional process transmitter
• Robust NEMA 4X (IP65) aluminum die cast housing
• Bright backlit LCD display
• 2 Wire 4-20mA
• Internal Push Button configurability allows quick range changes
• Scaling function allows display to indicate arbitrary physical units
• Flow measurement totalization/square root extraction function
• Easily rotatable display, 90° increments

Specifications

• Size: 65 mm

• Accuracy: 0,5 %
• Metric Range Min: 0 ... 10 mbar

• Metric Range Max: 0 ... 1 bar

• Imperial Range Min: 0 ... 4 in. H₂O

• Imperial Range Max: 0 ... 200 in. H₂O



Applications

The GC52 utilizes Ashcrofts’ proven Si-Glas™ silicon variable capacitance sensor technology in a wet-wet package ideal for applications where reliable, low differential pressure measurement is required with line (static) pressure to 300 psi. Applications include Pressurized and non-pressurized tank levels. In addition, this instrument offers flow measurement/square root extraction, where the momentary flow rate can be displayed and analog signal can be output.
