Description

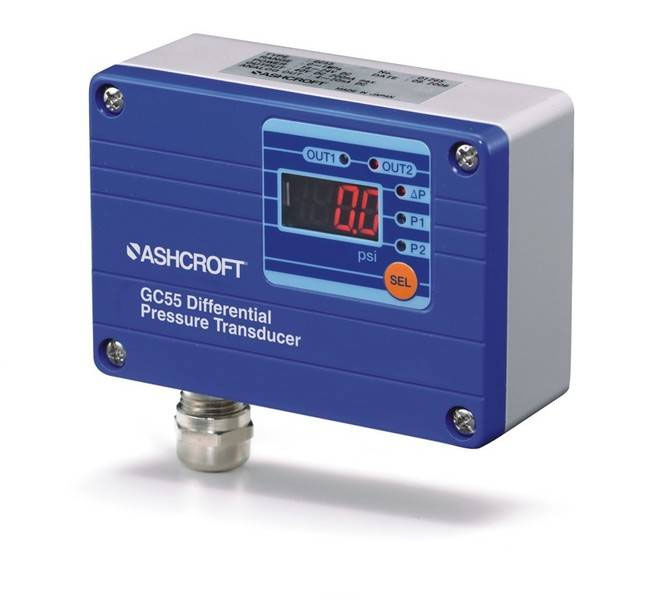

Wet/Wet Differential Pressure Transducer Model GC55

Features

• Robust aluminum die cast housing
• Bright LED display of pressure and switch status
• All stainless steel wetted parts
• 4-20mA or 1-5Vdc outputs
• Internal “Push-Button” configurability allows quick user pressure range changes or relay adjustments
• External “Push-Button” allows user to display P1, P2 or DP without opening cover
• Two sensor design well suited for high DP ranges

Specifications

• Size: 70x100x40 mm

• Accuracy: 0,5 %
• Metric Range Min: 0 ... 5 bar

• Metric Range Max: 0 ... 20 bar

• Imperial Range Min: 0 ... 75 psi

• Imperial Range Max: 0 ... 300 psi



Applications

The new Ashcroft® Model GC55 is a compact high differential pressure transducer, ideal for filter monitoring, HVAC hydronic cooling and heating systems and pump controls.
