Description

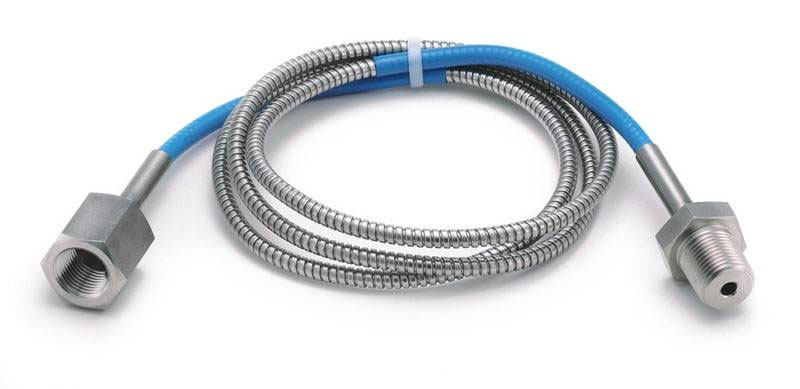

Flexible capillary line

Features

• Drawn bendable capillary tube
• Silver soldered connections
• Material stainless steel 304
• Spiral wound armor stainless steel 304
• Optional PVC protection cover on armor

Specifications

• Metric Range Max: 1000 bar

• Imperial Range Max: 15.000 psi



Applications

A flexible stainless steel armored line assembly, is available for mounting the gauge at some point away from the seal location to provide easy reading or to limit the temperature at the gauge to 100 °C maximum. Diaphragm seals (isolators) with filled, capillary line assemblies are another good solution to the problem of hot liquid and gas lines. Due to the small diameter of the flexible line (capillary) a five foot line length will usually assure that the temperature of the gauge connection does not exceed 100 °C.
