Description

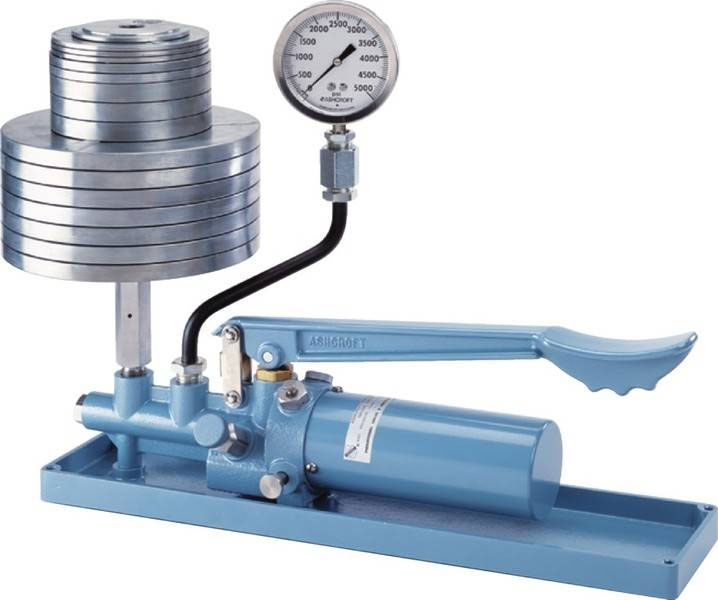

Deadweight Tester Model 1305D

Features

• Operating Media: 1305D with SAE 20 weight automotive or machine oil / 1305DH with Phosphate-• based or glycol fluids
• O-ring Material: 1305D Buna-N / 1305DH Ethylene Propylene (DH series)
• Piston and Cylinder Material: Stainless Steel
• Weight Material: Non-magnetic die cast zinc
• Reservoir Volume: Approximately 1.5 pints (0.7 liter)
• Special CD-5 Certification package available

Specifications

• Standard: NIST

• Accuracy: 0,1 %
• Imperial Range Min: 15 psi

• Imperial Range Max: 10.000 psi



Applications

For calibration and test applications requiring a primary standard
