Description

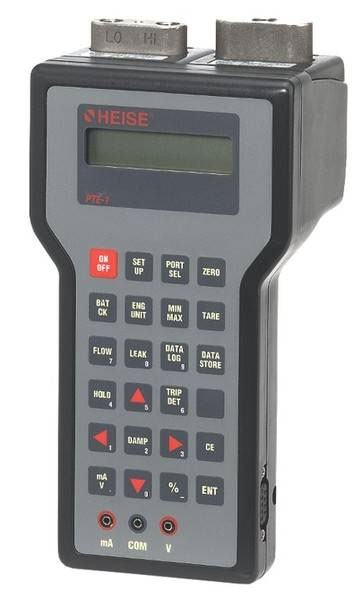

Digital Precision Handheld calibrator Model PTE

Features

• Rigid ABS-housing
• 12 different engineering units
• Can hold 2 sensor modules and display any 2 readings simultaneously
• Measures mA and volts via on-board input jacks
• Leak and flow measurements
• Min/max value and trip detection
• RS-232 interface
• Extensive data logging function optional

Specifications

• Accuracy: 0,025 %, 0,05 %, 0,1 %
• Metric Range Min: 0 ... 0,6 mbar

• Metric Range Max: 0 ... 700 bar

• Imperial Range Min: 0 ... 0,25 in. H₂O

• Imperial Range Max: 0 ... 10.000 psi



Applications

Field tested and proven reliable, the Heise® PTE-1 is the popular choice for portable pressure calibration around the world.
