Description

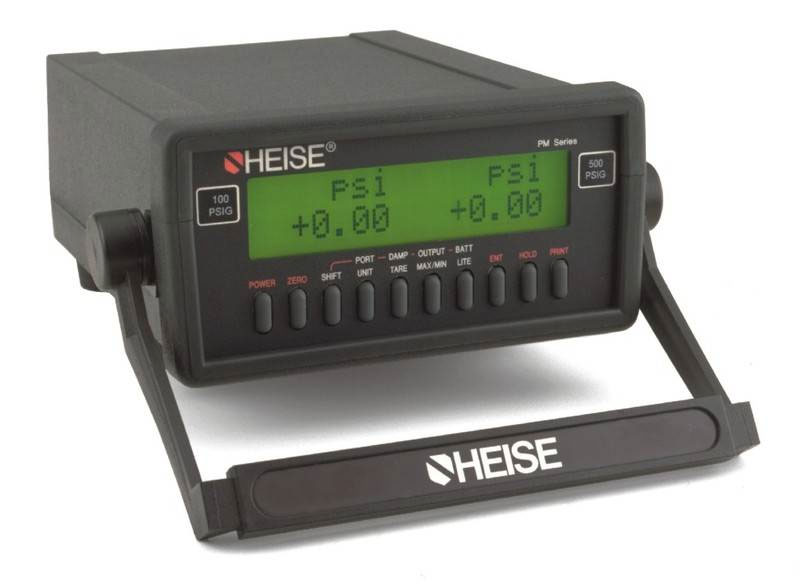

Digital Precision Indicator Model PM

Features

• Rigid ABS-housing
• 12 different engineering units
• 1 or 2 fixed mounted sensor modules
• RS-232 interface for data output and control of all functions
• Optional backlite display
• Optional NiCad power pack
• Many functions

Specifications

• Accuracy: 0,025 %, 0,05 %, 0,1 %
• Metric Range Min: 0 ... 0,6 mbar

• Metric Range Max: 0 ... 700 bar

• Imperial Range Min: 0 ... 0,25 in. H₂O

• Imperial Range Max: 0 ... 10.000 psi



Applications

The Heise® PM combines accuracy, utility and value in a compact LCD digital indicator. Able to hold 2 sensors and display both measurements simultaneously, the PM does the work of two precision indicators at a fraction of the cost. With standard features including engineering unit select, min/max recall, adjustable damping and RS232 output, the versatile PM is the instrument of choice for many demanding applications.
