Description

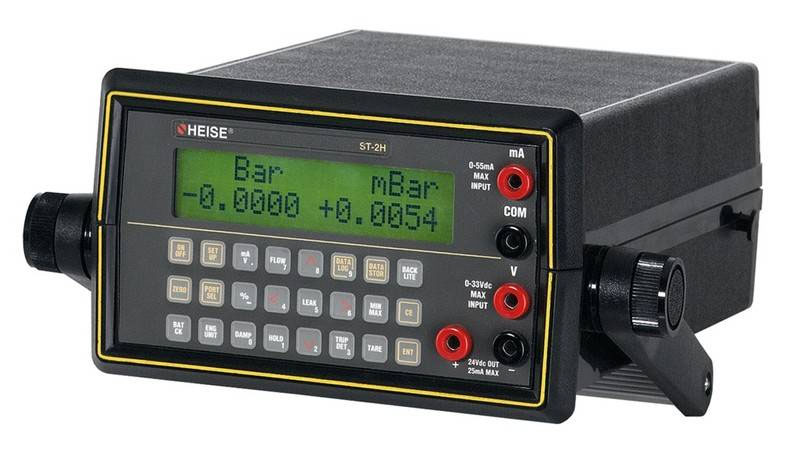

Digital Precision Calibrator Model ST-2H

Features

• Rigid ABS-housing
• 12 different engineering units
• Can hold 2 sensor modules and display any 2 readings simultaneously
• Measures mA and volts via on-board input jacks
• Leak and flow measurements
• Min./Max. value and trip detection
• RS-232 interface
• Extensive data logging function optional
• Integrated power source for transmitters testing optional

Specifications

• Accuracy: 0,025 %, 0,05 %, 0,1 %
• Metric Range Min: 0 ... 0,6 mbar

• Metric Range Max: 0 ... 700 bar

• Imperial Range Min: 0 ... 0,25 in. H₂O

• Imperial Range Max: 0 ... 10.000 psi



Applications

The ST-2H is the ideal bench top unit for calibration of pressure gauges, transducers, transmitters, switches and relief valves.
