Description

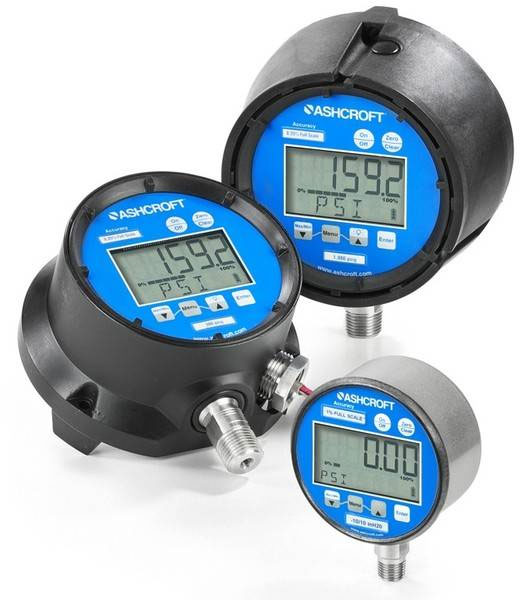

Digital Industrial Pressure Gauge Types 2074

Features

• Full scale terminal point accuracy
• Output signal 4-20 mA and up to 2 SPDT switches
• Extra large display with bar graph and optional backlite
• Rugged plastic, aluminum or stainless steel case
• 12 engineering units, min./max. recall, damping
• Auto-Off function
• Menu configure feature and calibration firmware
• Safety meets ASME B40.7
• High proof pressure

Specifications

• Size: 85 mm, 114 mm

• Accuracy: 0,25 %, 0,13 % BFSL
• Metric Range Min: -1 ... 0 bar

• Metric Range Max: 0 ... 1400 bar

• Imperial Range Min: -30 in. Hg ... 0 psi

• Imperial Range Max: 0 ... 20.000 psi



Applications

When any combination of local indication, a 4-20 mA signal and switching are required to meet your needs, the Ashcroft® digital industrial gauge provides the solution.
