Description

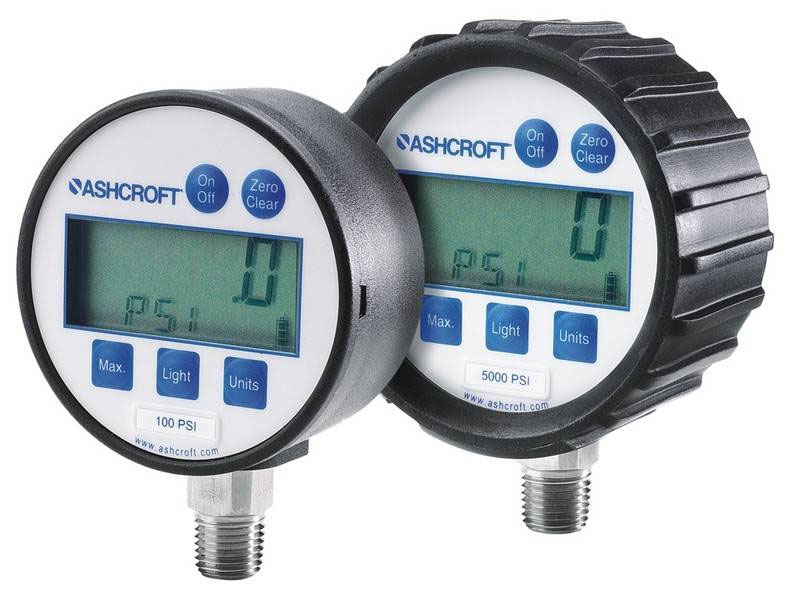

•General Purpose Digital Pressure Gauge Model D1005PS

Features

• 4 ½ digit display with enhanced resolution
• Easy readability with .50? character size and 12 o’clock view angle
• Nine engineering units of measure
• Standard ranges include vacuum and compound
• D1005PS with protective boot offers IP54 weatherproof enclosure
• Each D1005PS gauge is serialized for accurate traceability
• The versatile and economical choice for a wide variety of applications
• Meets ASME B40.7

Specifications

• Size: 70 mm

• Accuracy: 0,5 %, 0,25 %
• Metric Range Min: -1 ... 0 bar

• Metric Range Max: 0 ... 1400 bar

• Imperial Range Min: -30 ... 0 in. Hg

• Imperial Range Max: 0 ... 19.999 psi



Applications

The Ashcroft® Type D1005PS offers 0.5% of span accuracy, while the stainless steel sensor and socket make this product suitable not only for dry air applications but for other media as well. This product offers selectable units of measure so rather than purchasing one gauge for each unit of measure required, the solution is one gauge for multiple units of measure. The D1005PS is standard with many features not offered, or offered only as options, on competitor’s digital gauge products, such as peak hold and 41⁄2 digit display.When compared to mechanical gauges the D1005PS offers overall enhanced value.
