Description

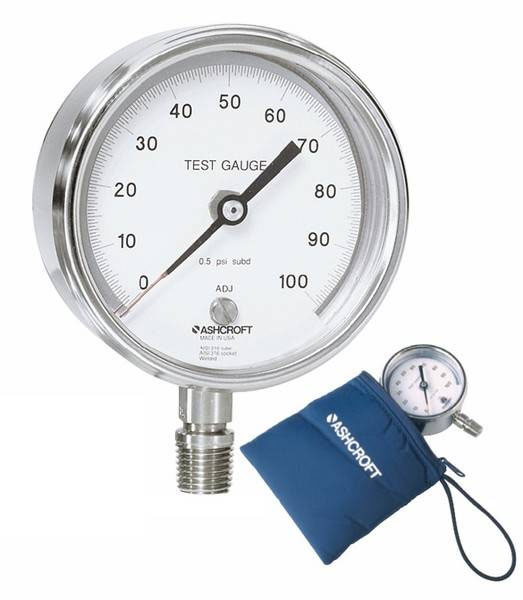

Pocket Test Gauge Model 1084

Features

• Stainless Steel movement with Teflon-coated bearings and pinion gear
• Black, adjustable pointer with red-painted knife-edge tip
• Stainless Steel construction
• Zero-adjustable white aluminum dial with polished mirror band
• 1/4 NPT lower connection only

Specifications

• Standard: ASME B40.1

• Size: 3 inch (81 mm)

• Accuracy: Grade 2A (0.5 %)
• Metric Range Min: 0 ... 1 bar

• Metric Range Max: 0 ... 70 bar

• Imperial Range Min: 0 ... 15 psi

• Imperial Range Max: 0 ... 1.000 psi



Applications

Maintenance repair shops
