Description

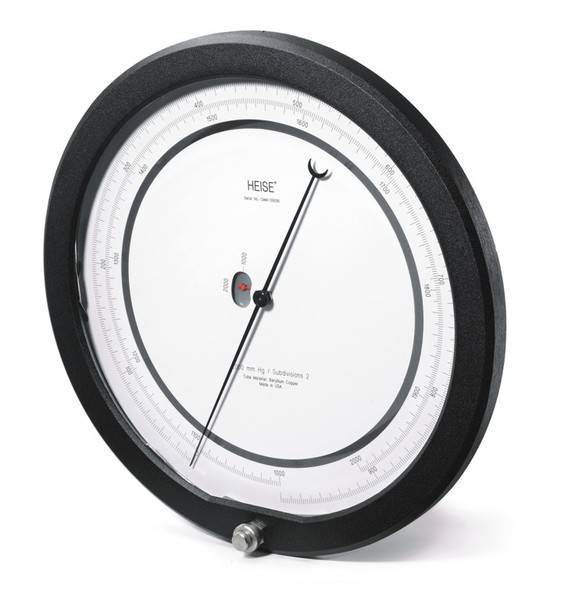

HEISE precision dial gauge Model CMM

Features

• Rugged solid front construction
• Usable to full scale
• Pointer travels 2 revolutions (660° arc)
• Flushing connection on tube standard
• Zero adjustment at the front
• Easy access for calibration
• Temperature compensation optional

Specifications

• Standard: ASME B40.1

• Size: 6, 8 ½, 12, 16 inch

• Accuracy: Grade 4A (0,1 %)
• Metric Range Min: 0 ... 2 bar

• Metric Range Max: 0 ... 600 bar

• Imperial Range Min: 0 ... 30 psi

• Imperial Range Max: 0 ... 10.000 psi



Applications

Test benches, Calibration laboratories, Maintenance repair shops
