Description

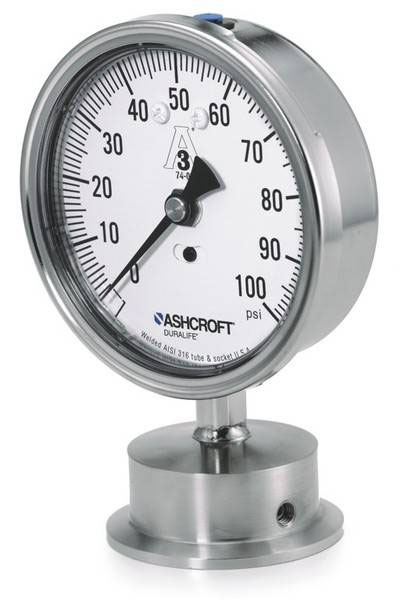

Sanitary Pressure Gauge with Tri-Clamp connection Type 1032

Features

• Plus! Performance available on 2 1/2", 3 1/2", 4 1/2" gauges
• All-welded 316 stainless steel bourdon tube
• Welded 316L stainless steel diaphragm and seal housing
• USP grade glycerin (99.5% pure, system fill) standard
• 300 series stainless steel case & ring
• Electropolished diaphragm & housing
• Dry and liquid filled gauge versions
• Weatherproof and hermetically sealed versions
• External Easy Zero™ adjust on 3 1/2" dials

Specifications

• Standard: 3A - 74-03
• Size: 2, 2 1/2, 3 1/2, 4 1/2 inch
• Accuracy: 1,5 %

• Metric Range Min: 0 ... 1 bar
• Metric Range Max: 0 ... 60 bar
• Imperial Range Min: 0 ... 15 psi
• Imperial Range Max: 0 ... 1000 psi

Applications

1032 sanitary pressure gauges can be autoclaved/sterilized and cleaned or steamed in place (CIP, SIP). These gauges have been designed specifically to meet the needs of the sanitary marketplace.
