Description

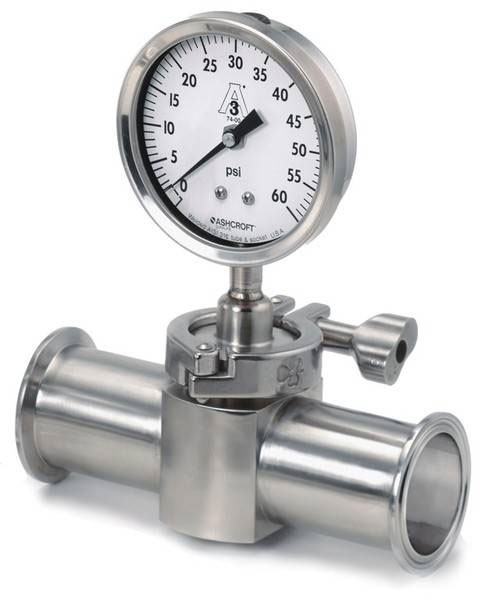

In-Line Sanitary Pressure Gauge Model 1036

Features

• All-welded stainless steel wetted surfaces
• Field liquid-fillable gauge case
• True ZeroTM pointer indication
• PowerFlexTM movement for extended life
• Easy ZeroTM external pointer adjustment standard
• Retrofits Anderson Instrument CPM design

Specifications

• Standard: 3A - 74-03
• Size: 3 1/2 inch
• Accuracy: 1,5 %

• Metric Range Min: 0 ... 1 bar
• Metric Range Max: 0 ... 40 bar
• Imperial Range Min: 0 ... 15 psi
• Imperial Range Max: 0 ... 600 psi

Applications

Ashcroft® Type 1036 in-line sanitary pressure gauge and Type 1037 sanitary instrument fitting virtually eliminate process deadleg. The design of the Type 1036 sanitary gauge and instrument fitting allows for the diaphragm of the gauge to be positioned at the gauge instrument fitting, eliminating the pocket or deadleg that may cause contamination.
