Description

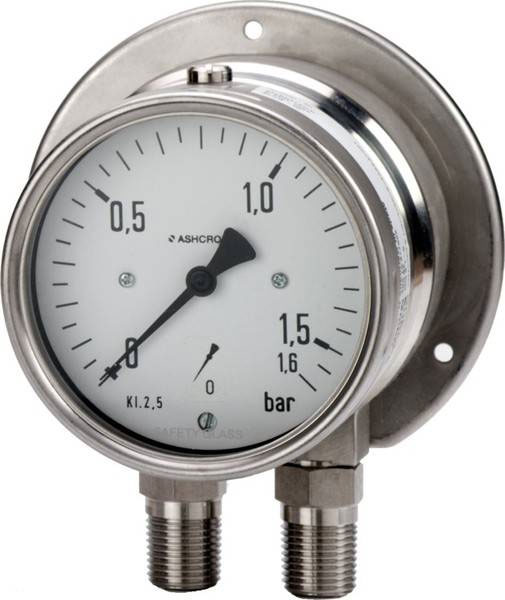

Stainless steel differential pressure gauge Model F5502

Features

• Stainless steel case and wetted parts
• Static pressure 25 bar, one side load permitted
• Protection IP65
• High corrosive resistance
• Dry or liquid filled
• Optional 1 or 2 microswitch SPDT

Specifications

• Size: 100 mm, 160 mm
• Accuracy: 2,5 %

• Metric Range Min: 0 ... 0,6 bar
• Metric Range Max: 0 ... 16 bar
• Imperial Range Min: 0 ... 10 psi
• Imperial Range Max: 0 ... 200 psi

Applications

Differential pressure measurement for gases and fluids up to 25 bar static pressure in Chemical and petrochemical industry, Machine and apparatus construction, Food and beverage industry, Pulp and paper industry
