Description

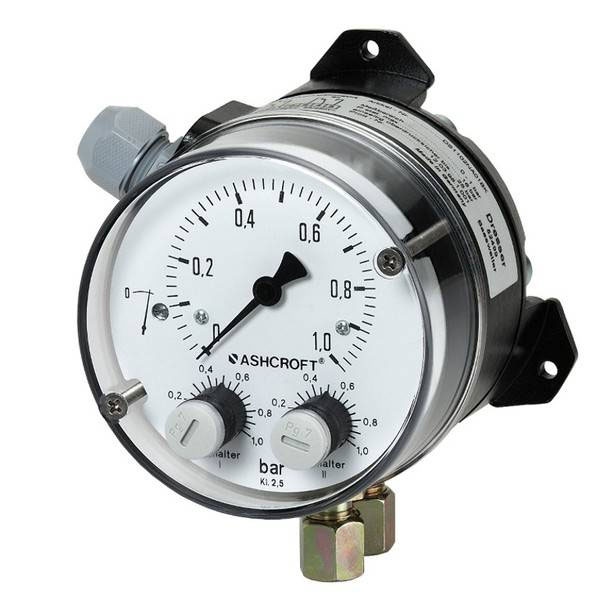

Differential pressure- switch/gauge Model F5511

Features

• High repeatability of the switching point
• Static pressure 25 bar, one side load permitted
• Protection IP54
• Long service life
• One or two independently adjustable contacts

Specifications

• Size: 100 mm
• Accuracy: 2,5 %
• Metric Range Min: 0 ... 400 mbar
• Metric Range Max: 0 ... 25 bar
• Imperial Range Min: 0 ... 160 in.H₂O
• Imperial Range Max: 0 ... 400 psi

Applications

Heating and ventilation, Machine and apparatus construction, Pulp and paper industry
