Description

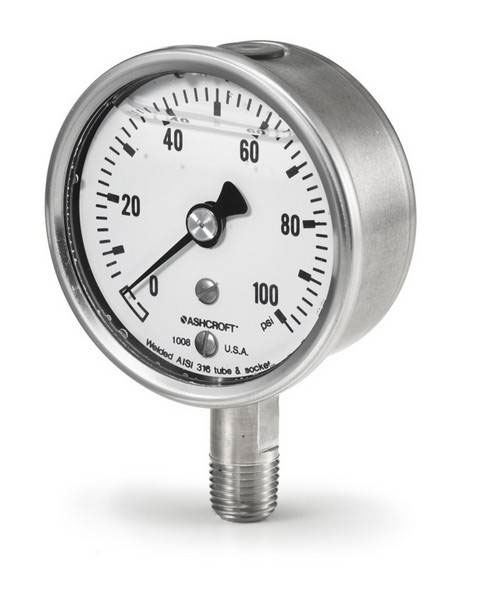

Industrial stainless steel case gauge with stainless steel system, Model 1008



Features



• Patented PowerFlexTM movement
• Rugged all welded construction
• Protection IP54 (vented) or IP65
• Overload protection 130 %
• Dry, liquid filled or liquid less (PLUS! Gauge)
• Measuring system stainless steel
• True ZeroTM pointer indication
• MSL Helium leak tested
• RoHS compliant



Specifications



• Standard: ASME B40.1, EN 837-1
• Size: 63 mm .. 100 mm
• Accuracy: 1,6 % (EN 837)
• Metric Range Min: -1 ... 0 bar
• Metric Range Max: 0 ... 1000 bar
• Imperial Range Min: -30 in. Hg ... 0 psi
• Imperial Range Max: 0 ... 15.000 psi



Applications

Machine and apparatus construction, Food and beverage industry, Pulp and paper industry
