Description

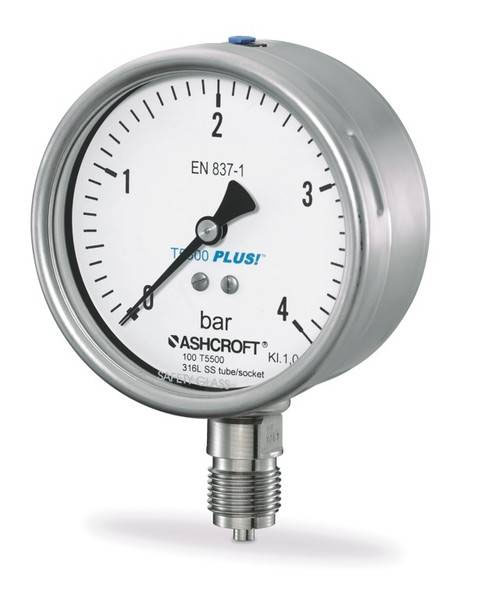

All stainless steel process gauge open front Model T5500

Features

• Rugged stainless steel construction
• Socket and case welded
• Protection IP65
• Optional ATEX approved
• Usable to full scale
• Overload protection 130 %
• Dry, liquid filled or liquid less (PLUS! gauge)
• Measuring system stainless steel or Monel
• Optional contacts

Specifications

• Standard: EN 837-1
• Size: 100 mm, 160 mm
• Accuracy: 1,0 %
• Metric Range Min: -1 ... 0 bar
• Metric Range Max: 0 ... 2500 bar
• Imperial Range Min: -30 ... 0 in. Hg
• Imperial Range Max: 0 ... 36.000 psi

Applications

Chemical and petrochemical industry, Machine and apparatus construction, Food and beverage industry, Pulp and paper industry
