Description

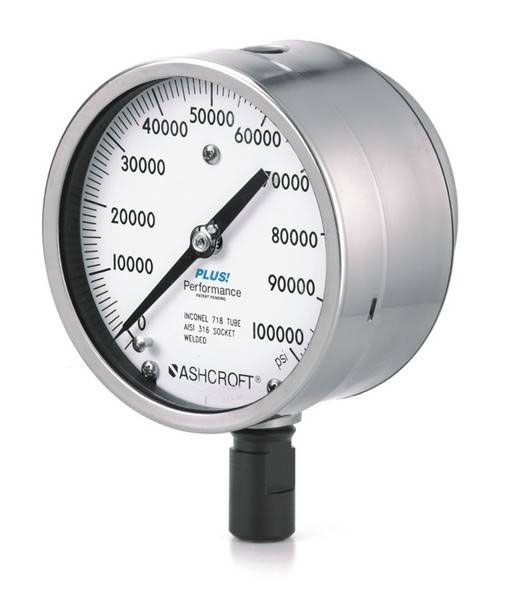

Solid front pressure gauge with stainless steel case Model 1109

Features

• Solid front case design with full blowout back
• Temperature compensated case
• 300 Series SS case and ring
• New PLUS!™ Performance Option

Specifications

• Standard: ASME B40.1
• Size: 4 1/2 Inch
• Accuracy: Grade 1A (1 %)

• Metric Range Min: -1 ... 0 bar
• Metric Range Max: 0 ... 6.000 bar
• Imperial Range Min: -30 ... 0 in. Hg
• Imperial Range Max: 0 ... 100.000 psi

Applications

The Type 1109 has been designed to meet the needs of both the offshore platform market and also the waterblaster or waterjet markets.
