Description

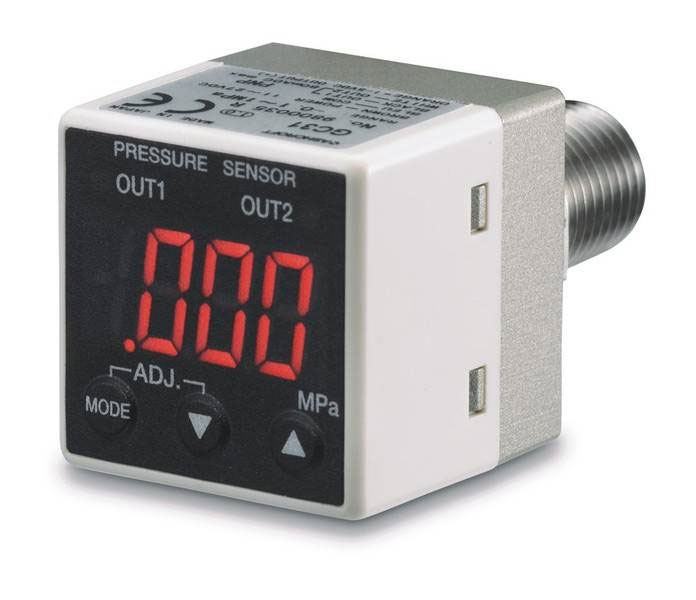

Ultra-Compact Digital Pressure Sensor Model GC31

Features

• Ultra-compact design (30 mm x 30 mm)
• Combined three-in-one digital pressure gauge, switch and transducer
• All stainless steel wetted parts
• Simple Push-Button configurability allows user to adjust switch settings, analog scaling
• Numerous standard ranges available
• Output signal 1-5 VDC

Specifications

• Size: 30x30x40 mm

• Accuracy: 1 %
• Metric Range Min: 0 ... 1 MPa

• Metric Range Max: 0 ... 50 MPa

• Imperial Range Min: 0 ... 50 psi

• Imperial Range Max: 0 ... 1.500 psi



Applications

Hydraulic presses, stamping equipment, lifts, Tire press vulcanization, pressure monitoring, Water, refrigerant or ammonia based cooling systems, Pressure monitoring on lubrication systems
