Description

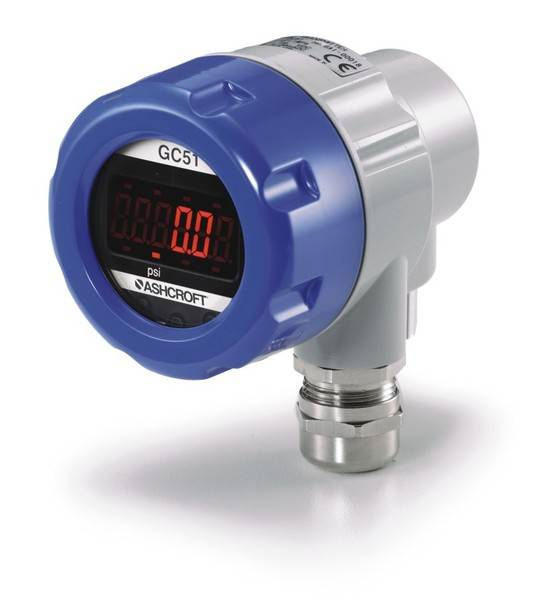

Rangeable Pressure Transmitter Model GC51

Features

• Up to 8 times smaller than a conventional process transmitter
• Robust NEMA 4X (IP65) aluminum die cast housing
• Bright backlit LCD display
• All stainless steel wetted parts
• 2 wire 4-20mA
• Internal Push Button configurability allows quick range changes
• Scaling function allows display to indicate arbitrary physical units
• Loop Check function allows unit to output 4-20mA without applying pressure
• Min / Max Hold function allows display to capture pressure events
• Easily rotatable display, 90° increments

Specifications

• Size: 65 mm

• Accuracy: 0,25 %
• Metric Range Min: -1 ... 1 bar

• Metric Range Max: 0 ... 517 bar

• Imperial Range Min: -30 in. Hg ... 15 psi

• Imperial Range Max: 0 ... 7.500 psi



Applications

The GC51 utilizes Ashcrofts’ proven polysilicon thin film sensor which makes the design suitable for applications where high overpressure and high cycle life are necessary, typically required in Pump Control, Hydraulic Systems, Compressor Control, Process Automation, Municipal Water Tank Level
