Description

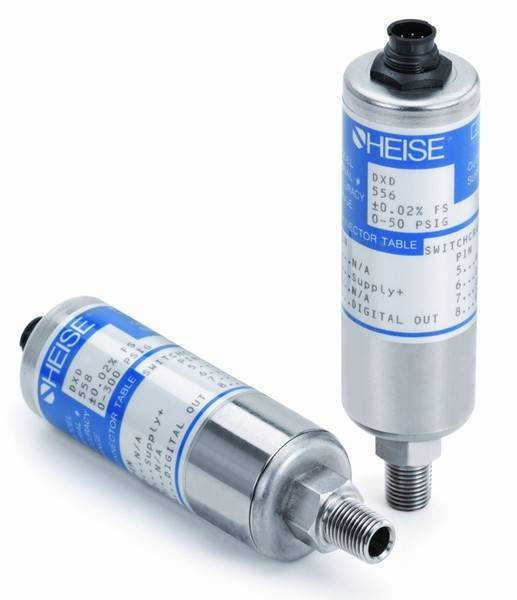

Model DXD Series Digital Pressure Transducer

Features

• Accuracy(1) ±0.02% F.S. total error band. Includes the effects of nonlinearity, hysteresis, non-repeatability and temperature
• Update Rate: 15mS
• Port speeds up to 115,200 bps
• Multi-drop digital communication via four-wire RS232 or six-wire RS485
• Easy connection to RS232 port on any standard PC compatible computer with available port adapter
• Available snap-together wiring components for quick electrical connection
• Up to 99 transducers on a single RS232 line
• Simple ASCII command structure
• Gauge, absolute, vacuum and compound pressure types
• 300 series stainless steel wetted materials and housing
• Rugged, shock resistant design

Specifications

• Accuracy: 0,02 % TEB
• Metric Range Min: 0 ... 0,4 bar

• Metric Range Max: 0 ... 517 bar

• Imperial Range Min: 0 ... 5 psi

• Imperial Range Max: 0 ... 7500 psi



Applications

The DXD Series digital pressure transducer sets a new standard for price and performance. It provides all of the advantages of an extremely precise digital output, simple interface and support software at a very affordable price.
