Description

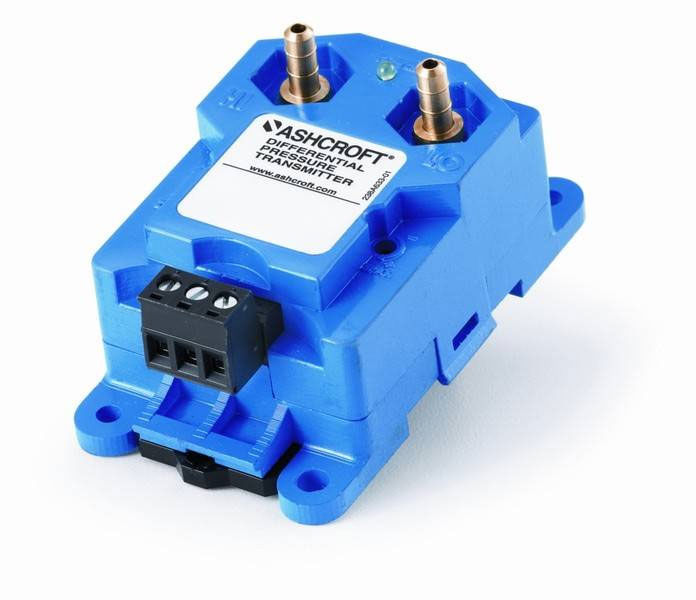

Low pressure differential transducer model CXLdp

Features

• Rugged ABS package capable of DIN rail or standard panel mounting
• LED power status indicator to assist in trouble shooting or quickly locating the instrument in a duct
• Detachable DIN style terminal block reduces wiring errors and field wiring time
• 25 standard pressure ranges all capable of withstanding 1 bar without damage or calibration change
• Digitally compensated, 0,4 % F.S. and 0,8 % F.S. accuracy models
• NIST traceable

Specifications

• Metric Range Min: 0 ... 25 Pa

• Metric Range Max: 0 ... 6 kPa

• Imperial Range Min: 0 ... 0,1 in. H₂O

• Imperial Range Max: 0 ... 25 in. H₂O



Applications

Static or velocity pressure measurement for four stations, ducts, building pressure, filter efficiency, VAV boxes or room pressurization.
