Description

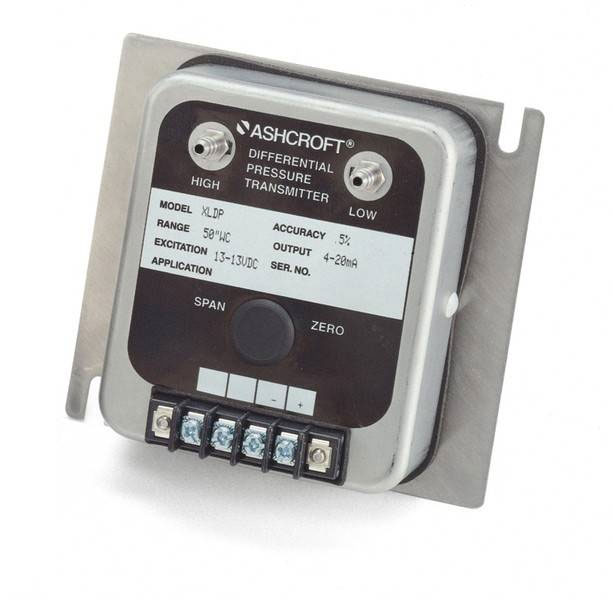

Low differential pressure transducer Model XLdp

Features

• NEMA 2 Stainless Steel construction
• Three output signals available
• Easy installation
• On-board voltage regulation allows use of lower cost, non-precise, unregulated power supply
• 9 point NIST Traceable Calibration Certificate
• Very low pressure ranges

Specifications

• Accuracy: 0,5 %, 0,25 %
• Metric Range Min: 0 ... 0,25 mbar

• Metric Range Max: 0 ... 125 mbar

• Imperial Range Min: 0 ... 0,1 in. H₂O

• Imperial Range Max: 0 ... 50 in. H₂O



Applications

HVAC, fume hood control, lab/clean/hospital room pressurization, medical lung function or breathing equipment, fan tracking, filter monitoring, or very low velocity measurements.
