Description

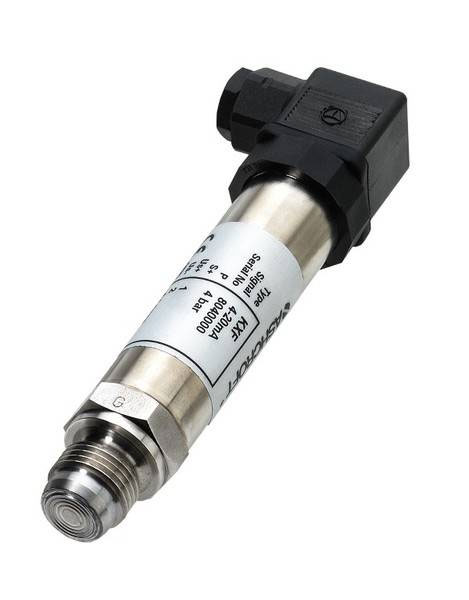

Pressure transducer with flush diaphragm model KXF

Features

• Rugged stainless steel construction
• Thin film sensing element
• High overpressure limits
• High shock and vibration stability
• Excellent long term stability
• Output signal 4-20 mA or voltage
• Protection IP65, IP67 and IP68
• Explosion proof (intrinsically safe) for zone 1 and 2 acc. ATEX
• Flush mounted diaphragm
• Sanitary application
• High temperature model up to 200 °C medium temperature

Specifications

• Accuracy: 0,5 %, 0,25 %
• Metric Range Min: 0 ... 1 bar

• Metric Range Max: 0 ... 600 bar

• Imperial Range Min: 0 ... 15 psi

• Imperial Range Max: 0 ... 8.700 psi



Applications

Food and beverage, pulp/paper, waste water, spray booths and all heavy medium pumping processes
