Description

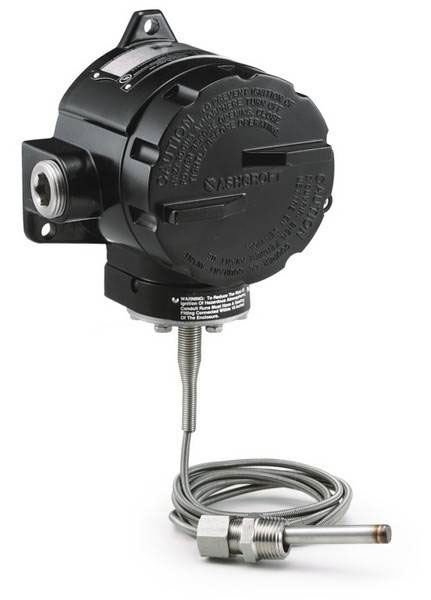

Temperature switch with explosion proof enclosure series T7

Features

• Choice of switch elements for all applications, including hermetically sealed
• Fixed or limited adjustable deadband
• Case epoxy coated aluminum
• ATEX II 2 GD or II 1 GD
• Class I, Div. 1 & 2, Groups B, C, & D and Class II, Div. 1 & 2, Groups E, F & G
• Protection IP66 or NEMA 7/9
• Rigid stem and capillary types up to 15 m

Specifications

• Accuracy: ±1 %
• Metric Range Min: -40 ... 16 °C

• Metric Range Max: 260 ... 400 °C

• Imperial Range Min: -40 ... 60 °F

• Imperial Range Max: 500 ... 750 °F



Applications

Chemical and petrochemical industry, Machine and apparatus construction, Food and beverage industry, Pulp and paper industry
