Description

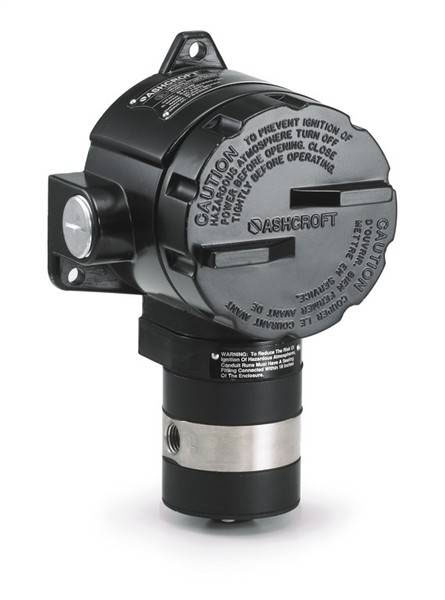

Differential Pressure with explosion proof enclosure switch series D7

Features

• Choice of switch elements for all applications, including hermetically sealed
• Fixed or limited adjustable deadband
• Case epoxy coated aluminum
• ATEX II 2 GD or II 1 GD
• Class I, Div. 1 & 2, Groups B, C, & D and Class II, Div. 1 & 2, Groups E, F & G
• Protection IP66 or NEMA 7/9
• Wide choice of wetted materials, including all-welded Monel or stainless steel
• High proof pressure

Specifications

• Accuracy: ±1 %
• Metric Range Min: 75 mbar

• Metric Range Max: 42 bar

• Imperial Range Min: 30 in. H₂OD

• Imperial Range Max: 600 psid



Applications

Chemical and petrochemical industry, Machine and apparatus construction, Food and beverage industry, Pulp and paper industry
