Description

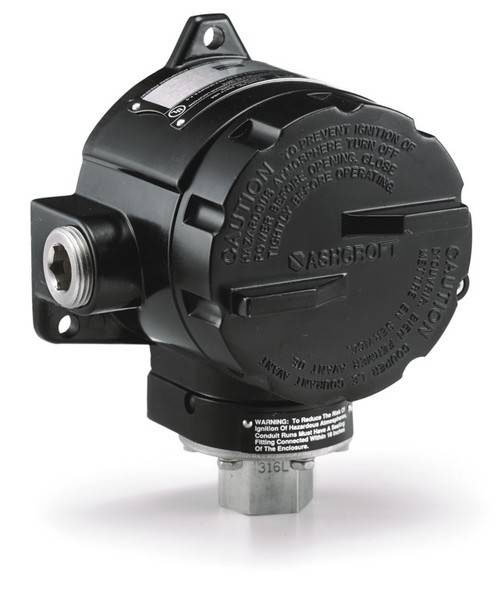

Pressure switch with explosion proof enclosure series B7

Features

Choice of switch elements for all applications, including hermetically sealed
Fixed or limited adjustable deadband
Case epoxy coated aluminum
ATEX II 2 GD or II 1 GD
Class I, Div. 1 & 2, Groups B, C, & D and Class II, Div. 1 & 2, Groups E, F & G
Protection IP66 or NEMA 7/9
Wide choice of wetted materials, including all-welded Monel or stainless steel
High proof pressure

Specifications

Accuracy: ±1 %
Metric Range Min: -37,5/+37,5 mbar

Metric Range Max: 210 bar

Imperial Range Min: -15/+15 in. H₂O

Imperial Range Max: 3000 psi



Applications

Chemical and petrochemical industry, Machine and apparatus construction, Food and beverage industry, Pulp and paper industry
