Description

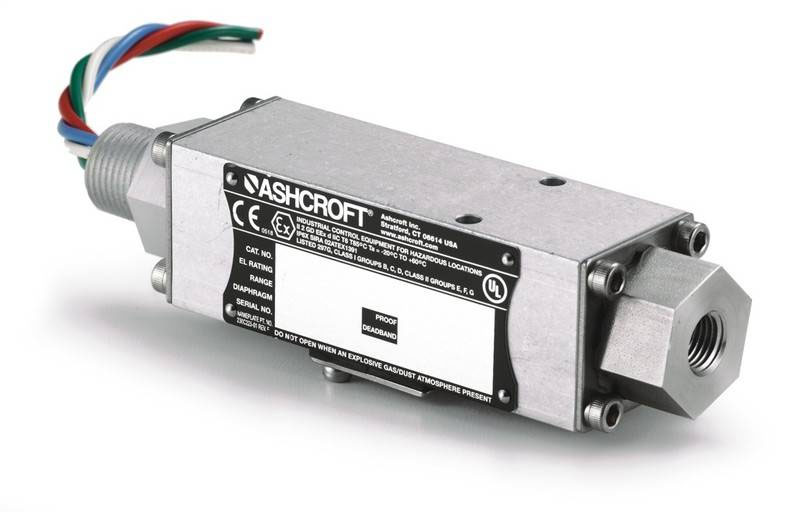

Compact Pressure switch with exxplosion proof body series FP

Features

• Diaphragm-sealed piston actuator for long, reliable service
• Choice of wetted materials and pressure connection for all applications
• Watertight anodized aluminum body for environmental protection
• Hermetically sealed snap-acting switch element
• Field adjustable
• Standard 1/2 NPT Male electrical conduit connection
• Factory sealed leads
• Directly interchangeable with many similar models for convenience
• Setpoints adjustable from 15-100% of range. Exception: stainless steel welded (codes) adjustable from 20-100%

Specifications

• Accuracy: ±1 %
• Metric Range Min: -1/0 bar

• Metric Range Max: 280 bar

• Imperial Range Min: -30 in. Hg

• Imperial Range Max: 4000 psi



Applications

Ideal for pressure alarm, shutdown, control on: Engines and compressors, Process applications, Offshore applications, Panels, Pipelines, Hazardous locations, Corrosive environments, Machine tools, Replacement and retrofit, Where size is a consideration or equipment is being downsized
