Description

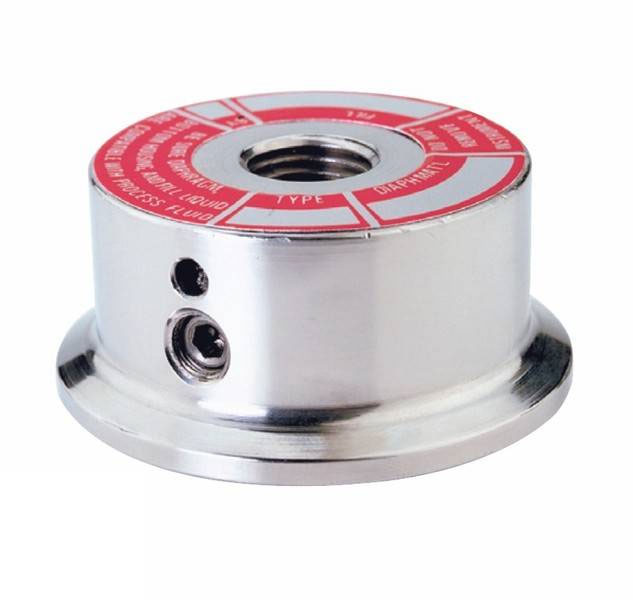

Quick Connect Diaphragm Seal Model 320

Features

• 316L Stainless Steel diaphragm welded to a 316L Stainless Steel top housing
• Fill/bleed connection
• Top housing and pressure instrument removable from process
• Compatible with Tri-Clover and Cherry Burrell S line connections

Specifications

• Size: 1 1/2, 2 Inch
• Metric Range Min: 1 bar

• Metric Range Max: 60 bar

• Imperial Range Min: 15 psi

• Imperial Range Max: 1000 psi



Applications

Typical applications include the pharmaceutical, dairy, food processing, biotechnology, and filtration markets. Also included are breweries, distilleries, wineries and citrus juice production plants.
