Description

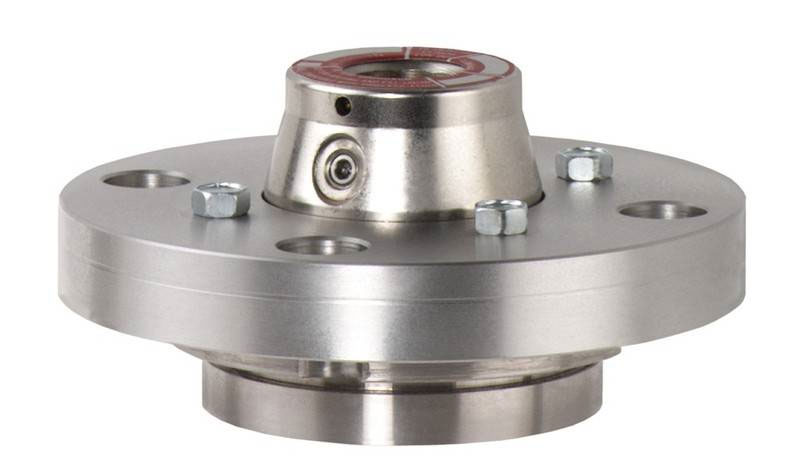

Diaphragm seal with welded diaphragm, flanged type Model 202/203

Features

• Continuous-duty diaphragm capsule is welded to the top housing
• Interchangeable components
• Removable top and bottom housing
• Variety of wetted parts materials
• Optional ATEX approved
• Model 203 with flushing connection

Specifications

• Standard: ANSI / DIN

• Size: 1/2 ... 3 Inch / DN15 ... DN80
• Metric Range Min: PN6

• Metric Range Max: PN100

• Imperial Range Min: 150 lbs

• Imperial Range Max: 1500 lbs



Applications

Chemical and petrochemical industry, Offshore installations, Machine and apparatus construction, Waste water treatment, Pulp and paper industry
