Description

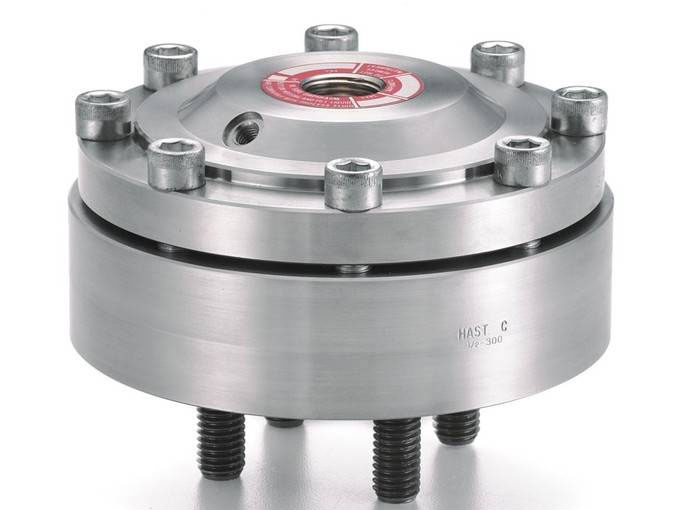

Instrument Isolator, High Displacement Model 702/703

Features

• Used in instruments with large displacement actuators
• For applications requiring an impermeable metallic diaphragm
• Available in many material combinations
• Diaphragm electron beam welded to isolator body
• Furnished with fill/bleed connection
• The Type 703 has a flushing connection

Specifications

• Size: 1/2 ... 3 Inch
• Metric Range Min: 75 mbar

• Metric Range Max: 50 bar

• Imperial Range Min: 30 in. H₂O

• Imperial Range Max: 600 lbs

Applications

Used in instruments with large displacement actuators
