Description

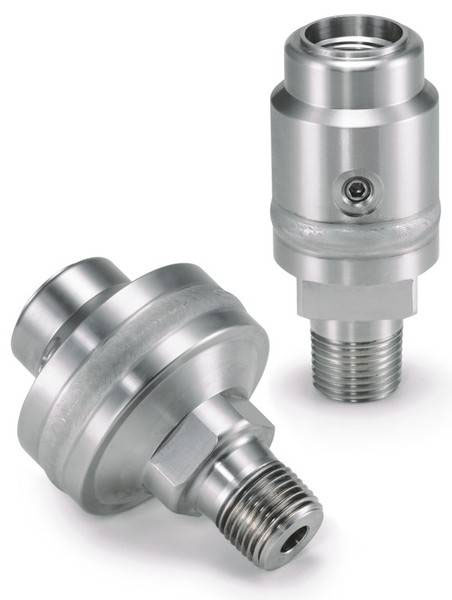

All Welded Diaphragm Seal Model 510/511

Features

Compact size
Light weight
All-welded design
1,500 psi rating standard, 5,000 psi rating optional
Continuous duty design
Minimized fill volume
Male connections eliminate adapters/fittings
Available flushing connection (Type 511)

Specifications

Metric Range Min: 1 bar

Metric Range Max: 345 bar

Imperial Range Min: 15 psi

Imperial Range Max: 5.000 psi



Applications

Corrossive processes, Controlling fugitive emissions, Elevated process temperatures, Suspended solids in the process, Limited space, Where male process connections are preferred
