Description

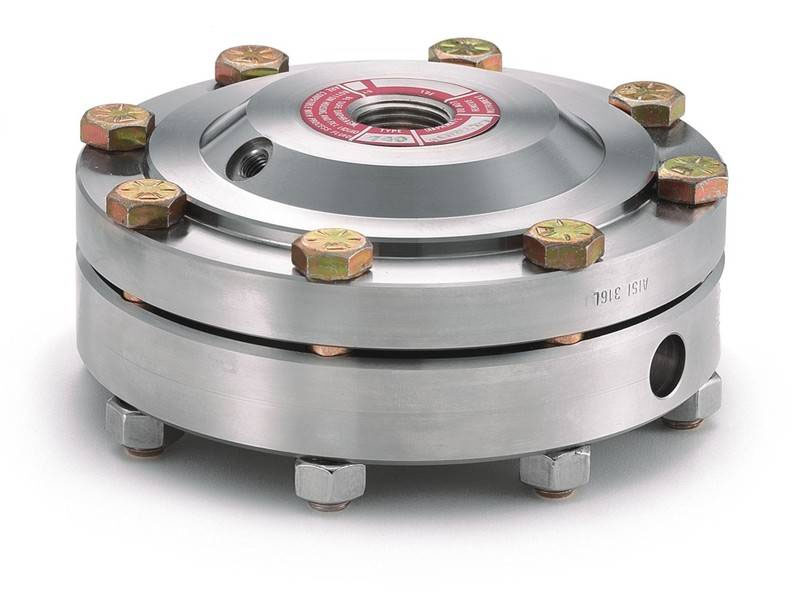

Instrument Isolator, High displacement Model 740/741

Features

Used in instruments with large displacement actuators
For applications requiring an impermeable metallic diaphragm
Available in many material combinations
Diaphragm electron beam welded to isolator body
Furnished with fill/bleed connection
The Type 741 has a flushing connection

Specifications

Metric Range Min: 75 mbar

Metric Range Max: 50 bar

Imperial Range Min: 30 in. H₂O

Imperial Range Max: 750 psi



Applications

Used in instruments with large displacement actuators
