Description

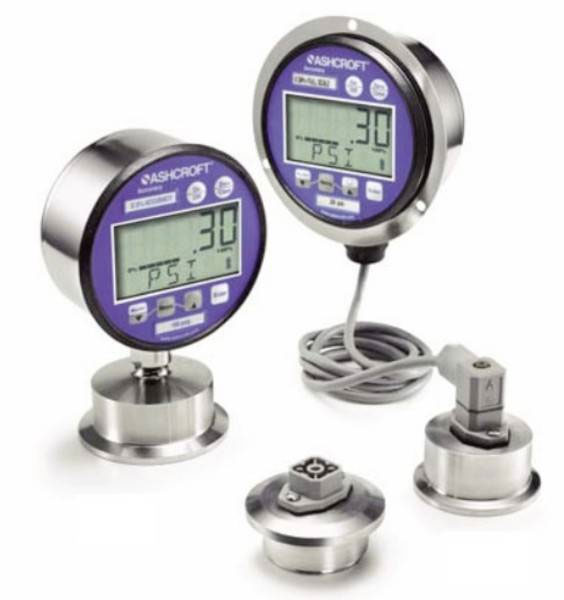

Digital Sanitary Gauge Type 2032, 2132, 2232, 2036, 2136 & 2236

Features

• 4/20 mA Output
• (1) or (2) SPDT Switches
• 0,25% F.S. Terminal Point Accuracy (0,13 % BFSL)
• IP65 Weatherproof Case Suitable for Wash Downs
• Extra Large Display
• Easy-to-Use Password Protected Menu with 5 Backlite Display Options, 12 Engineering Units, Menu • • Configure Feature, Update Rate, Dampen Rate, Auto-Off
• Material Traceability Certification to EN 10204: 2004 3.1

Specifications

• Standard: ASME B40.7

• Size: 80 mm

• Accuracy: 0,25 %
• Metric Range Min: -1 ... 0 bar

• Metric Range Max: 0 ... 60 bar

• Imperial Range Min: -30 ... 0 in. Hg

• Imperial Range Max: 0 ... 1000 psi



Applications

The new Ashcroft® sanitary digital gauge has been designed to monitor pressures in critical pharmaceutical, biotech or food processing applications when a Tri-Clamp® type of connection is required. These gauges can be cleaned and steamed in place (CIP/SIP) and meet ASME B40.7.
