Description

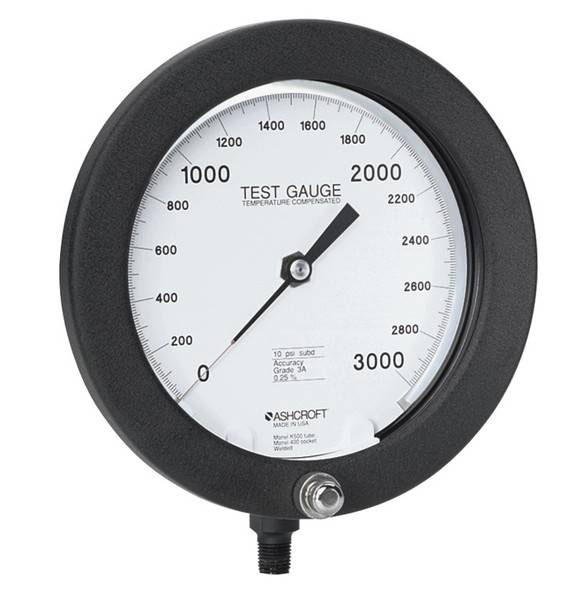

Test Gauge with solid front case Model 1082

Features

• External adjustable dial facilitates compensation for tare or zero adjustment (standard version)
• Temperature compensated movement that significantly reduces temperature error
• MicroSpan™ adjustment for ease in span calibration
• Long life bourdon tube
• Hydraulically staked movement provides improved stability
• Improved dial and pointer results in excellent readability
• Supplied with solid front case for safety
• Overload protection 130 %
• Measuring system brass or Monel

Specifications

• Standard: ASME B40.1

• Size: 4 ½, 6, 8 ½ inch

• Accuracy: Grade 3A (0,25 %)
• Metric Range Min: -1 ... 0 bar

• Metric Range Max: 0 ... 700 bar

• Imperial Range Min: -30 in. Hg ... 0 psi

• Imperial Range Max: 0 ... 10.000 psi



Applications

Test benches, Calibration laboratories, Maintenance repair shops
