Description

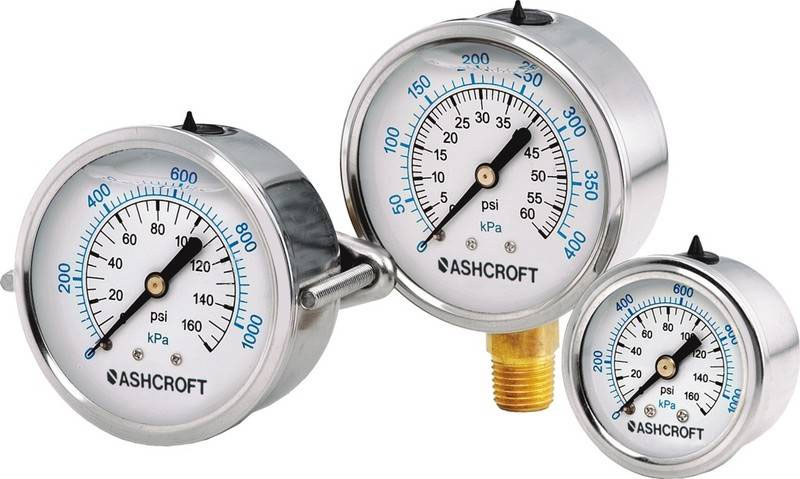

Industrial all stainless steel case gauges Model 4008

Features

• Rugged construction
• Protection IP54 and IP65
• Overload protection 130 %
• Dry or liquid filled

Specifications

• Standard: ASME B40.1 / EN 837-1
• Size: 40, 50, 63, 100 mm
• Accuracy: Grade B / 2,5 % opt. Grade A / 1,6 %
• Metric Range Min: -1 ... 0 bar
• Metric Range Max: 0 ... 600 bar
• Imperial Range Min: -30 ... 0 in. Hg
• Imperial Range Max: 0 ... 10.000 psi

Applications

Machine and apparatus construction, Food and beverage industry, Pulp and paper industry, hydraulic and pneumatic control
