Description

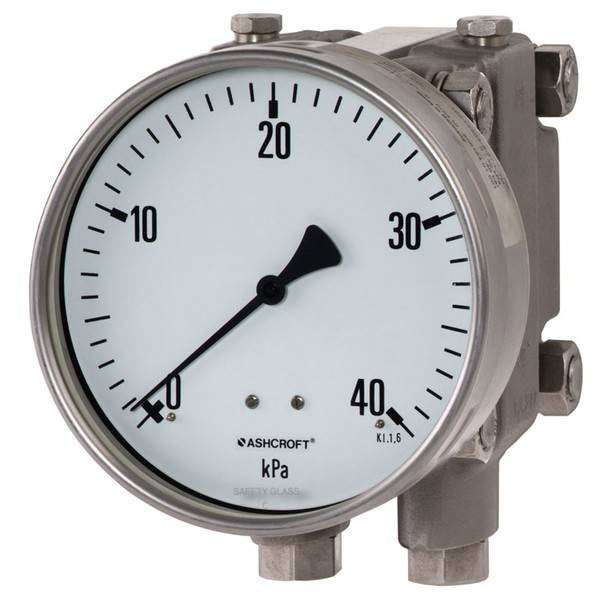

Stainless steel differential pressure gauge Model F5503

Features

• Stainless steel case and wetted parts
• Static pressure 100 bar, 160 bar, 250 bar and 400 bar optional, one side load permitted
• Protection IP54 or IP65
• Chamber purge and bleed connection available
• High corrosive resistance
• Dry or liquid filled
• Dual diaphragm, solid front not required
• Wetted parts stainless steel, Hastelloy C or Monel

Specifications

• Size: 100 mm, 160mm
• Accuracy: 1,6 %, 1 %, 0,5 %

• Metric Range Min: 0 ... 40 mbar
• Metric Range Max: 0 ... 40 bar
• Imperial Range Min: 0 ... 16 in.H₂O
• Imperial Range Max: 0 ... 600 psi

Applications

Differential pressure measurement for gases and fluids up to 400 bar static pressure in Chemical and petrochemical industry, Machine and apparatus construction, Food and beverage industry, Pulp and paper industry
