Pressure & Temperature Instruments

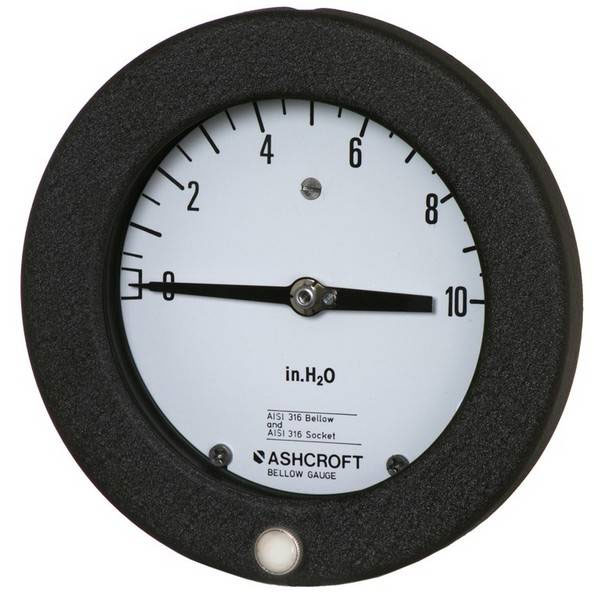

Low Pressure Bellows Gauge, Solid Front Model 1187

Description


Low pressure bellows gauge, solid front Model 1187


Features


• Rugged construction
• Protection IP54
• High sensitivity
• Aluminum case for panel mounting
• Bellows-actuated mechanism
• Measuring system brass, stainless steel or Monel


Specifications


• Standard: ASME B40.1
• Size: 4 ½ inch
• Accuracy: Grade A (2-1-2 %)

• Metric Range Min: -25 ... 0 mbar
• Metric Range Max: 0 ... 600 mbar
• Imperial Range Min: -10 ... 0 in.H2O
• Imperial Range Max: 0 ... 10 psi


Applications


Low pressure measurement for gases and clean fluids in Chemical and petrochemical industry, Machine and apparatus construction, Air handling and packing systems
