Description

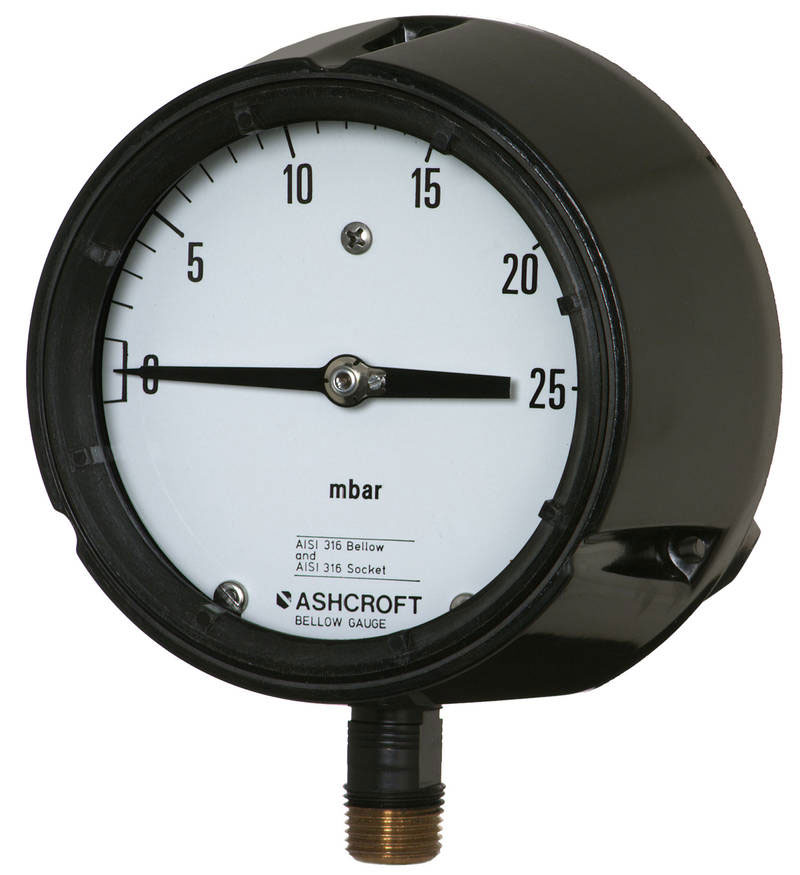

Low pressure bellows gauge, solid front Model 1188

Features

• Rugged construction
• Protection IP54
• High sensitivity
• Phenolic case
• Bellows-actuated mechanism
• Measuring system brass, stainless steel or Monel

Specifications

• Standard: ASME B40.1
• Size: 4 ½ inch
• Accuracy: Grade A (2-1-2 %)

• Metric Range Min: -25 ... 0 mbar
• Metric Range Max: 0 ... 600 mbar
• Imperial Range Min: -10 ... 0 in.H₂O
• Imperial Range Max: 0 ... 10 psi

Applications

Low pressure measurement for gases and clean fluids in Chemical and petrochemical industry, Machine and apparatus construction, Air handling and packing systems
