Description

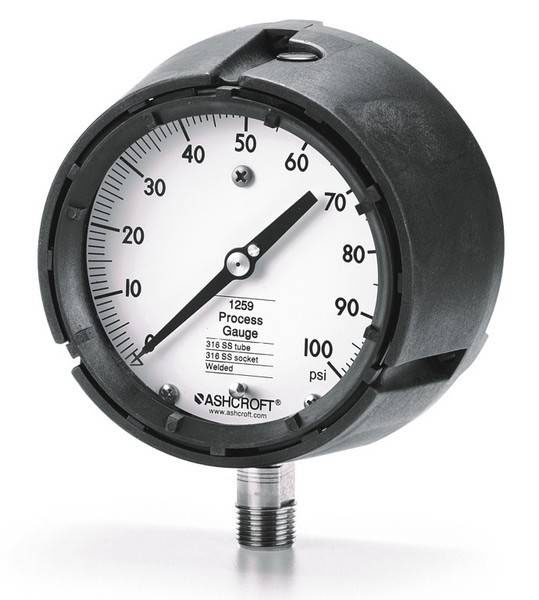

Process pressure gauge model 1259

Features

• Solid front safety case
• As-welded Bourdon tube for safety and longer life
• Easily adjustable, self locking micrometer pointer
• Adjustable movement
• Date coded socket to ensure pedigree
• Wetted part material printed on dial

Specifications

• Standard: ASME B40.1
• Size: 4 1/2 inch
• Accuracy: Grade 2A (0,5 %)

• Metric Range Min: -1 ... 0 bar
• Metric Range Max: 0 ... 1.400 bar
• Imperial Range Min: -30 ... 0 in. Hg
• Imperial Range Max: 0 ... 20.000 psi

Applications

The Type 1259 process gauge is offered with an as-welded Bourdon tube to ensure safety and a longer life than competitive gauges. Meeting ASME B40.1, the Type 1259 process gauge has been engineered to meet marketplace requirements.
