Description

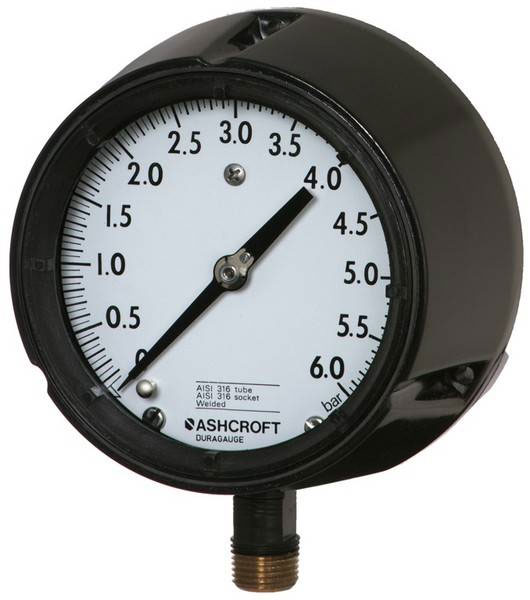

Duragauge pressure gauge, solid front Model 1279

Features

• Rugged construction
• Protection IP54 or IP65
• Usable to full scale
• Overload protection 130 %
• Phenolic case
• Dry, liquid filled or liquid less (PLUS! gauge)
• Measuring system brass, stainless steel or Monel

Specifications

• Standard: ASME B40.1
• Size: 4 ½ inch
• Accuracy: Grade 2A (0,5 %)

• Metric Range Min: -1 ... 0 bar
• Metric Range Max: 0 ... 1600 bar
• Imperial Range Min: 30 ... 0 in. Hg
• Imperial Range Max: 0 ... 30.000 psi

Applications

Chemical and petrochemical industry, Machine and apparatus construction, Food and beverage industry, Pulp and paper industry
