Description

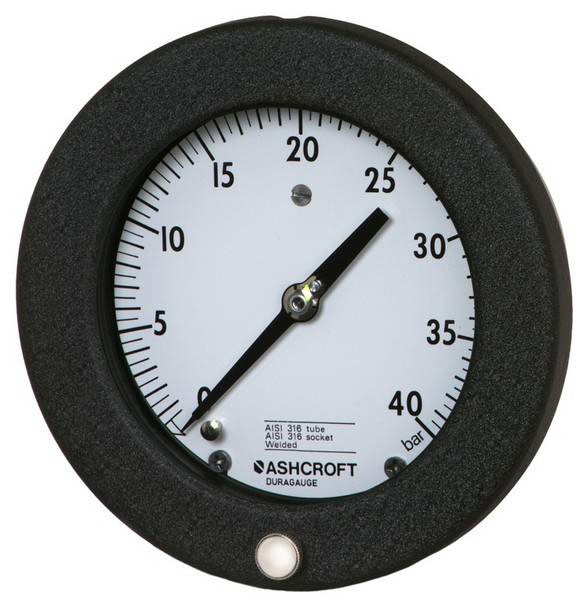

Duragauge pressure gauge, solid front Model 1377

Features

• Rugged construction
• Protection IP54 or IP65
• Usable to full scale
• Overload protection 130 %
• Aluminum case for panel mounting
• Dry, liquid filled or liquid less (PLUS! gauge)

• Measuring system brass, stainless steel or Monel

Specifications

• Standard: ASME B40.1
• Size: 4 ½, 6 ...8 ½ inch
• Accuracy: Grade 2A (0,5 %)

• Metric Range Min: -1 ... 0 bar
• Metric Range Max: 0 ... 1600 bar
• Imperial Range Min: 30 ... 0 in. Hg
• Imperial Range Max: 0 ... 30.000 psi

Applications

Chemical and petrochemical industry Machine and apparatus construction Food and beverage industry Pulp and paper industry
